Universal treadmill board and console kit to be used with 8 to 9 cm diameter DC motors
Special Price
€249.99
Regular Price
€400.00
In stock
SKU
kit-scheda-motore-e-console-tapis
Universal treadmill board and console kit to be used with 8 to 9 cm diameter DC motors.
Universal kit, which includes a board and a console for treadmill. To be used with 8 to 9 diameter DC 180-230V motors.
Please note:
If your treadmill has manual tilt or your inclination motor doesn’t have position encoder, please contact us.
Functioning of the universal replacement kits and treadmill consoles

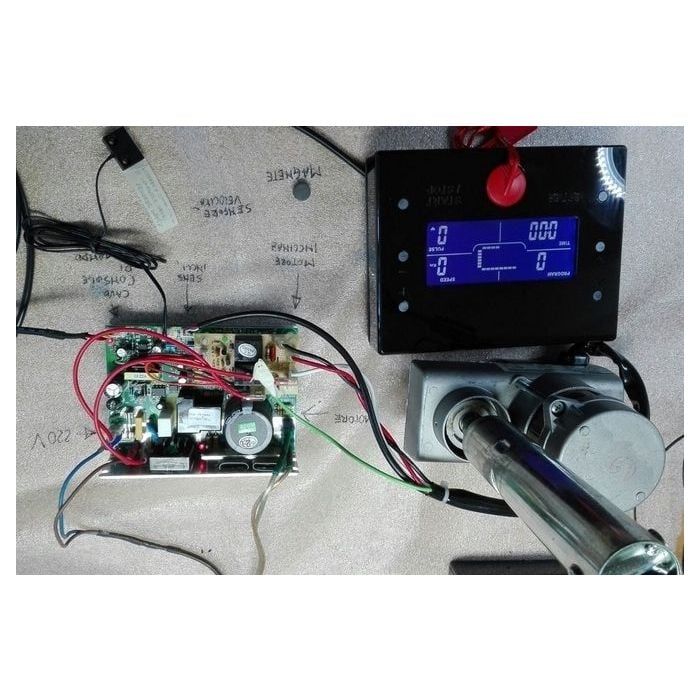

This kit is made up of:
Console with LCD backlight;
Display: 109 x 44 mm LCD,
Speed range 0.8 ~ 14 km / h
Motor controller board capable of driving engines up to 9 cm in diameter
Security key
Magnetic sensor kit + magnet to be placed on the treadmill roller to read the speed
Console Features
Security key
Provides reading of BMI (body mass index) and body fat
Gradient control: engine inclination on 12 levels
Programs: 1 manual, 7 pre-set programs, 3 targets, 2 HRCs and 2 user-set programs
Easy control of speed, tilt and start / stop
Predisposition for heartbeat control (via hand pulse or chest-belt by means of a special adapter)
Installation
Install the wiring of the new kit, possibly drilling the original console plastic
Remove the original controller of the treadmill, including any transformers connected to it. You no longer need any transformer because the new controller is self-powered.
Put the new engine card in the place of the old one, and then reconnect the cables
Connect speed sensor 2 pins If the old board did not have speed sensor -> install the 2 pins sensor provided in the kit on the roller
If the old board had a 3 or 4 pins sensor -> remove the old sensor and install the 2 pins sensor provided in the kit on the roller
Connect 3 pins inclination sensor
Connect Console data cable: 4 pins
Connect Main motor cables: two faston connectors, M + (red) and M- (black)
Connect Inclination Motor power cables: Three Faston Connectors, White COM - Red UP - Black DOWN
Connect AC power cables (place on AC connectors).
Connect the console cables, in particular the motor-console data cable and any other connectors (handpulse, additional keyboards), as shown in the attached scheme
Now paste the new console, using the two-sided tape supplied with the kit.
Check the console manual to see all functions: download the manual here.
